Built-in controller type
This electric actuator features a built-in controller, which helps save space in the control panel. Three operating modes are available—Solenoid Valve Mode (Single Type), Simple 3-Point Mode, and 4-Point Mode—enabling positioning at up to four points.
View catalog

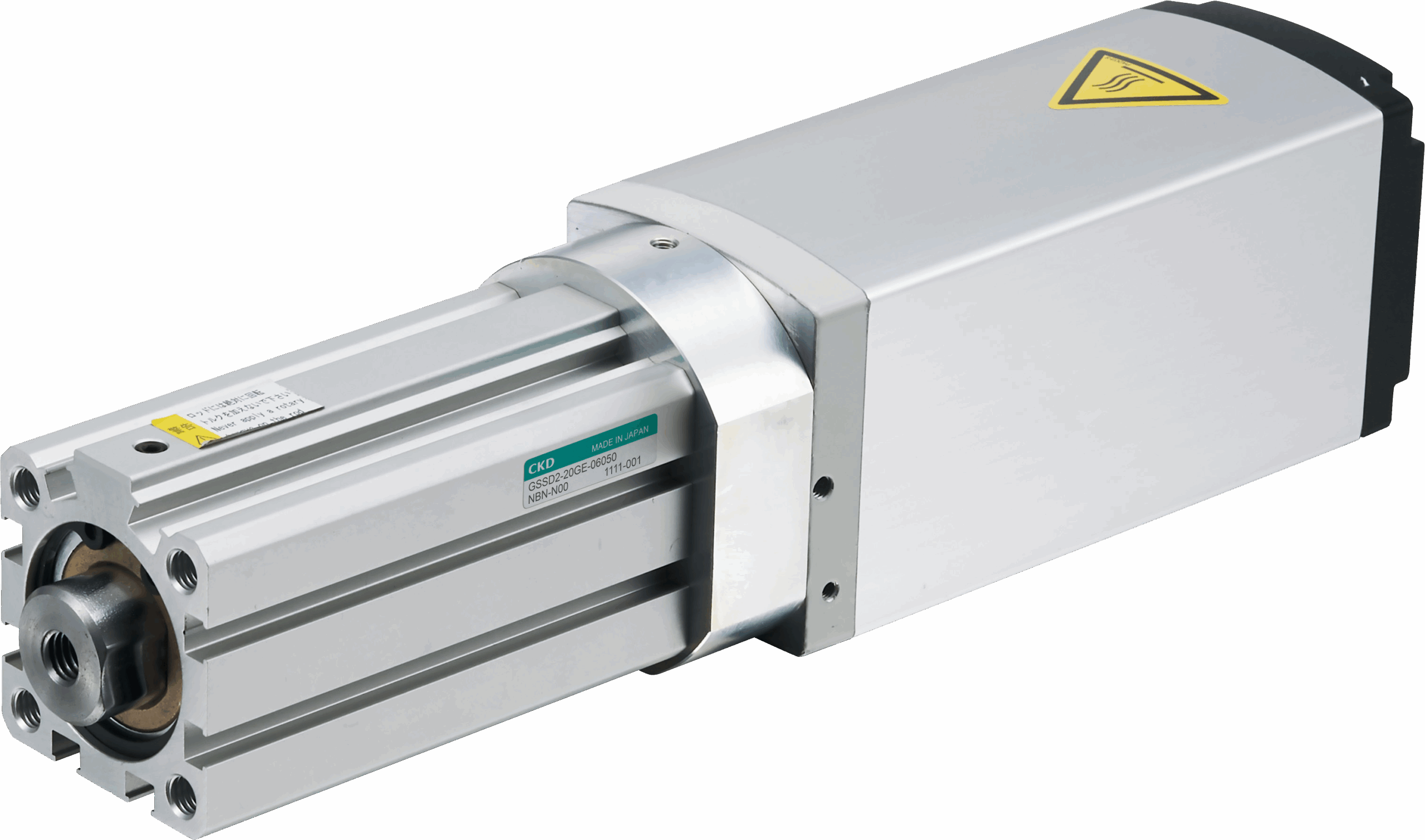

Compact type
Compact type can move to multiple positions, while keeping the equivalent size and capacity as pneumatic cylinder. This model requires an external guide.
View catalog

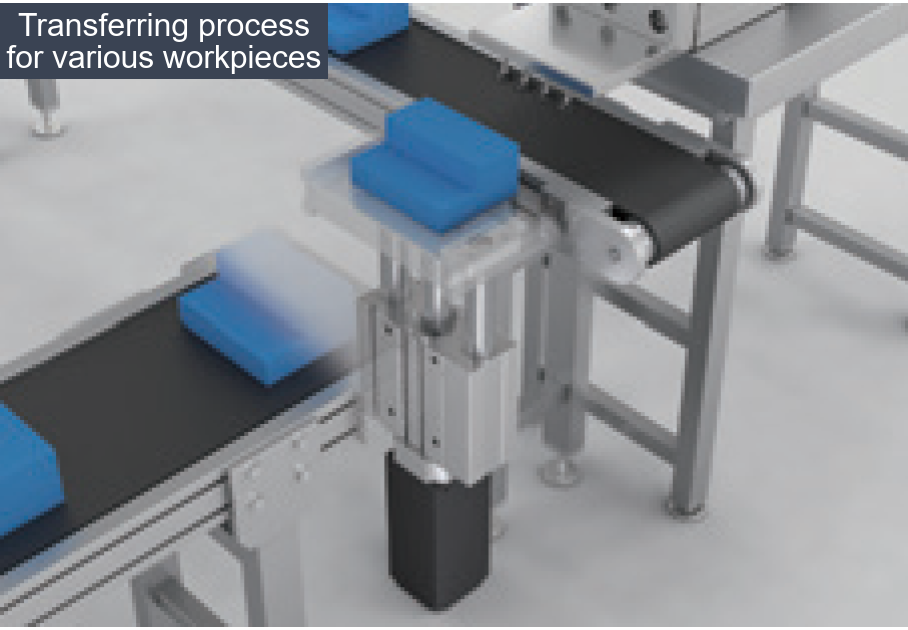

Guided type
Guided types equip with guides like guided pneumatics cylinder, but can move to multiple positions. It is ideal for replacing pneumatics to electric actuators, by keeping the compatibility but upgrading the functions of electric actuators.
View catalog

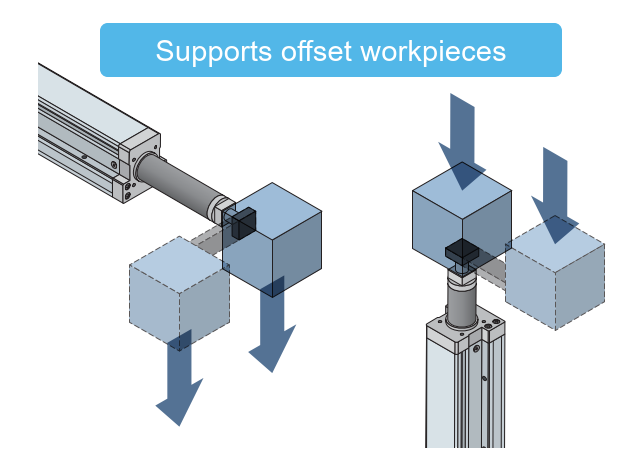

With interal guide
It has a built-in outer rail type guide, reducing the need for additional guides. It is compact and highly rigid model that contributes to the space saving of the device. In addition, a batteryless absolute encoder can be installed. which enables retaining position information and doesn’t require homing after an emergency stop.
View catalog
-
DSSD2
Max payload(kg) : 14.8
Max speed (mm/s) : 180
Compact Rod with screw drive, simple 2 positions -

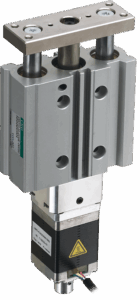

DSTG
Max payload(kg) : 14.8
Max speed (mm/s) : 180
Guided type with sliding screw, up to stroke 100mm, simple 2 positions -

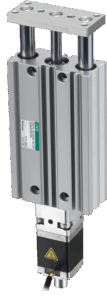

DSTL
Max payload(kg) : 14.8
Max speed (mm/s) : 180
Guided type with sliding screw, up to stroke 200mm, simple 2 positions -

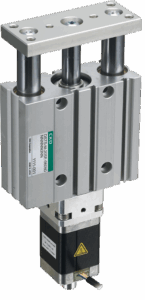

DSTS
Max payload(kg) : 14.8
Max speed (mm/s) : 180
Guided type with sliding screw, up to stroke 50mm, simple 2 positions -
EBR
Max payload(kg) : 80
Max. Push Force(N) : 1050
Compact Rod with internal guide -

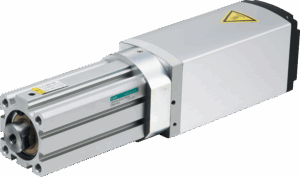

GSSD2
Max payload(kg) : 19.6
Max. Push Force(N) : 590
Compact Rod with sliding screw, 64 positions -

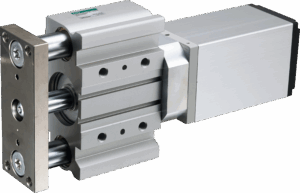

GSTG
Max payload(kg) : 19.6
Max push force (N) : 590
Guided Rod, up to stroke 100mm, 64 positions -

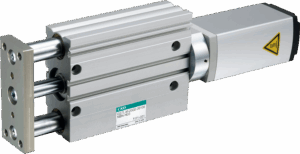

GSTL
Max payload(kg) : 19.6
Max push force (N) : 590
Guided Rod, up to stroke 200mm, 64 positions -

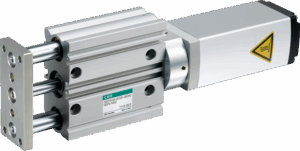

GSTS
Max payload(kg) : 19.6
Max push force (N) : 590
Guided Rod, up to stroke 50mm, 64 positions -

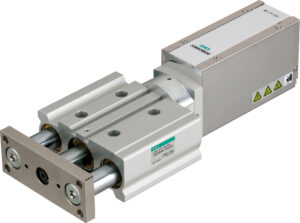

LRXG-STG
Max payload(kg) : 19.6
Max push force (N) : 590
Built-in controller, Max 4 Positions, up to 430 kg as stopper
