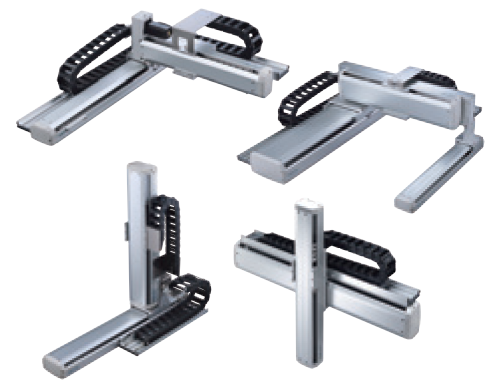

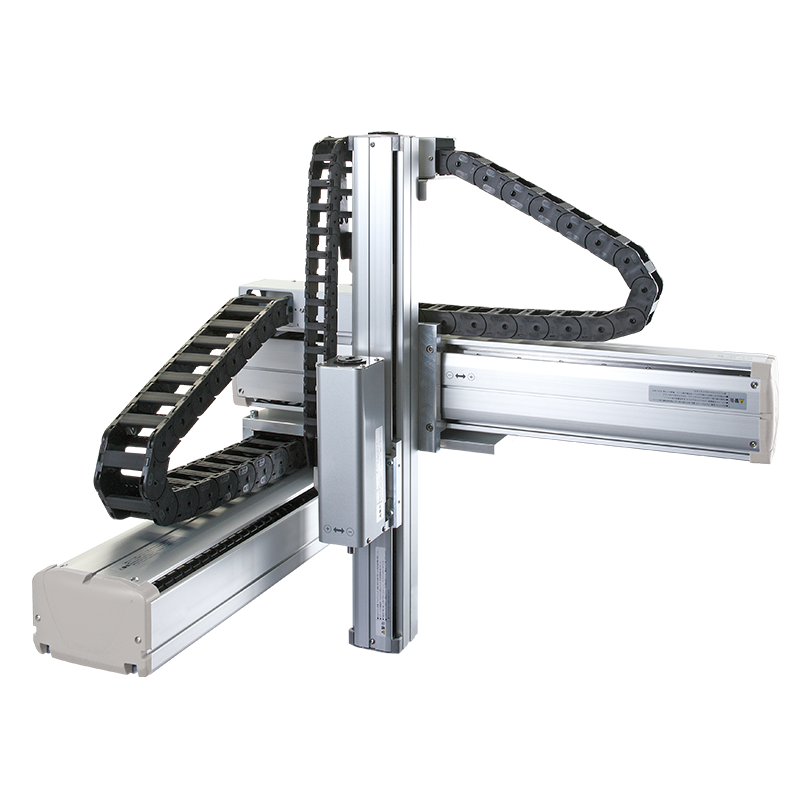

Cartesian
Ideal for multi-axis operation suited to the application. CKD offers a solution for XY type, XZ type, and YZ type
View catalog
Low dust
Equivalent up to Class 2.5 (ISO 14644-1) cleanroom compatibility, this motorless actuator minimizes particle generation through vacuum extraction at the suction port. Available in both ball screw and belt-driven types for versatile cleanroom automation.
View catalog
Rod
Motorless rod-type actuator allows for flexible motor integration from various manufacturers. Its integrated outer rail guide system combines body and guide for enhanced radial load capacity, effectively handling offset workpieces and minimizing the need for auxiliary guides. The top-mount design simplifies installation.
View catalogSlider with ball screw
This actuator utilizes ball bearings between the screw shaft and nut for low-friction, high-efficiency operation. Lead screw pitch determines speed and thrust: longer leads yield faster speeds and lower thrusts, while shorter leads provide slower speeds and higher thrusts.
View catalogSlider with belt
CKD’s belt-driven actuator offers a wide range of sizes for optimal design flexibility. Its long stroke capability exceeds the limits of ball screw drives. For sizes 14 and above, dual linear guides ensure exceptional rigidity.
View catalog-

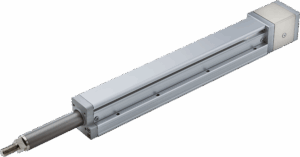

EBR-L (Servo)
Max payload(kg) : 110
Max. Rated Thrust (N) : 1388
For Servo motor -
EBR-L (Stepper)
Max payload(kg) : 50
Max. Rated Thrust (N) : 683
For Stepper motor -

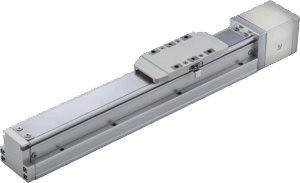

EBS-L (Servo)
Max stroke (mm) : 1250
Max payload(kg) : 110
Standard slider for servo motor -
EBS-L (Stepper)
Max stroke (mm) : 1100
Max payload(kg) : 50
Standard slider for stepper motor -
EBS-L-C (Servo)
Max stroke (mm) : 1100
ISO Class 2.5 Equivalent
Low dust, Ball screw type -

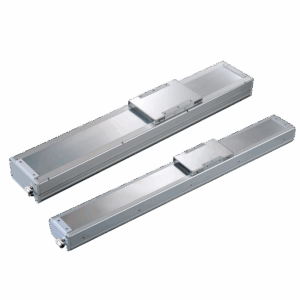

ECS (Servo)
Max payload(kg) : 150
ISO Class 4 or 5 equivalent
Low dust, Ball screw type -
ECS (Stepper)
Max payload(kg) : 110
ISO Class 4 or 5 equivalent
Low dust, Ball screw type -
ECV (Servo)
Max stroke (mm) : 3400
ISO Class 4 or 5 equivalent
Low dust, Belt type -

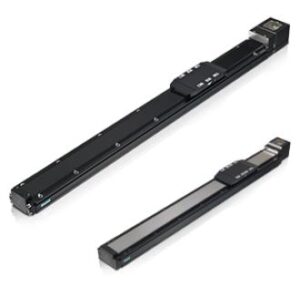

EFS (Servo)
Max stroke (mm) : 1250
Max payload(kg) : 80
Thin and lightweight actuator, with the black body (special specification) -

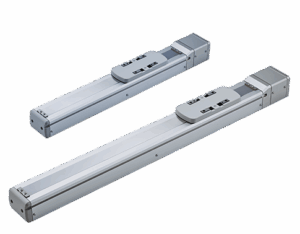

EKS (Servo)
Max speed (mm/s) : 2500
Max payload(kg) : 118.5
High takt and high rigidity (up to 4G) -

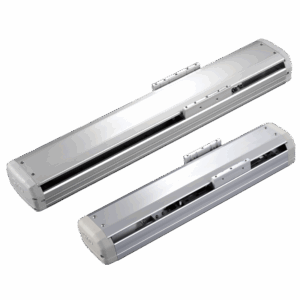

ETS (Servo)
Max stroke (mm) : 1500
Max payload(kg) : 150
Standard slider for servo motor -
ETS (Stepper)
Max stroke (mm) : 1050
Max payload(kg) : 110
Standard slider for stepper motor -
ETS XY
Max X Stroke : 1500mm
Max Y Stroke : 750mm
XY system for servo motors -

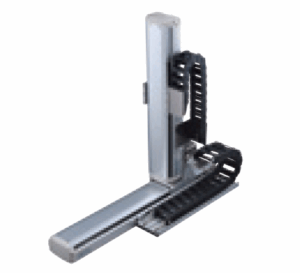

ETS XZ
Max X Stroke : 1500mm
Max Z Stroke : 950mm
XZ system for servo motors -
ETS YZ
Max Y Stroke : 1250mm
Max Z Stroke : 550mm
YZ system for servo motors -

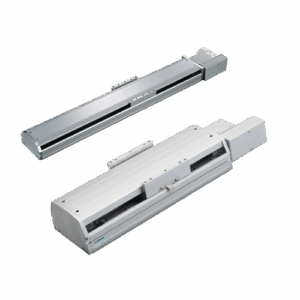

ETV (Servo)
Max stroke (mm) : 3500
Max speed (mm/s) : 2000
Belt type
